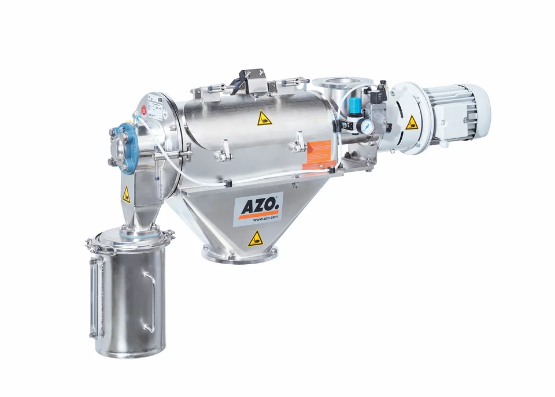

AZO Cyclone Screener – FLF 650

The liquid with the solids is metered continuously and without bubbles into the screener via the inlet pipe. The rotor with the feeding screw transfers the liquid into the screening chamber where it is gently swirled through the screen fabric by the fluidizing bars. The liquid then flows through the screen fabric into a collecting vessel via the liquids discharge. The solids are conveyed to the solids outlet where they are discharged into a chute and transferred to the production process. The residence time in the screen chamber and thus the residual moisture of the solids can be influenced within certain limits by the adjustable tilt. The throughput capacity especially depends on the mesh size and the driving speed of the frequency converter (optional). The screen fabric can vibrate freely and thus cleans itself automatically. Blows caused by smaller foreign substances can also be get under control so that there is no damage.
