Screena

Screena Mobile Separator
Mace Industries Logo

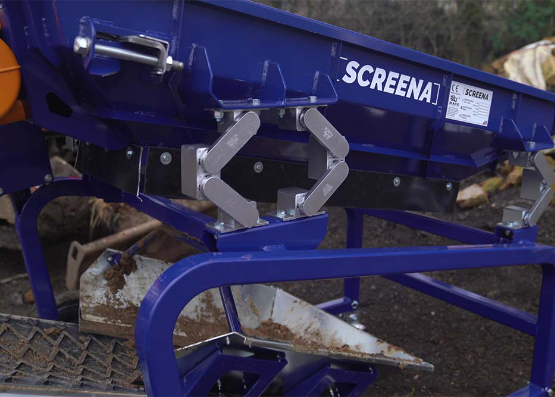

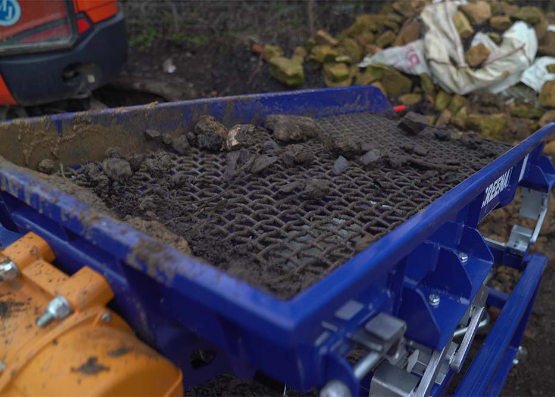

The Screena is an innovative solution specifically designed for the screening of materials in many diverse environments and industries. With locking, easily interchangeable screens (ranging from 6mm -50mm), you can select what works for your job and have it set up in minutes. While being a sturdy unit at just under 200kg, the SCREENA is incredibly easy to move. Once lifted via the handles, the SCREENA is roughly equivalent to 20kg due to the weight distribution over the wheelbase, along with run-flat pneumatic tyres, the SCREENA can traverse rough terrain with ease. The new singular motion oscillating mounts allow for a superior linear screening motion and are totally maintenance free for life. A linear motion not only throws material forward, guiding it across the screen but also offers less overspill compared to the spring-mounted screens.

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

BENEFITS

The dual auxiliary sockets enable you to link and run the SCREENA in tandem with our portable Shifta conveyors from one power supply, offering a one-stop-shop solution to reduce waste on-site and recycle product to be used again. This makes the SCREENA perfect for on-site screening during construction and landscaping jobs with the screened product being typically cheaper to dispose of / command a higher price for.

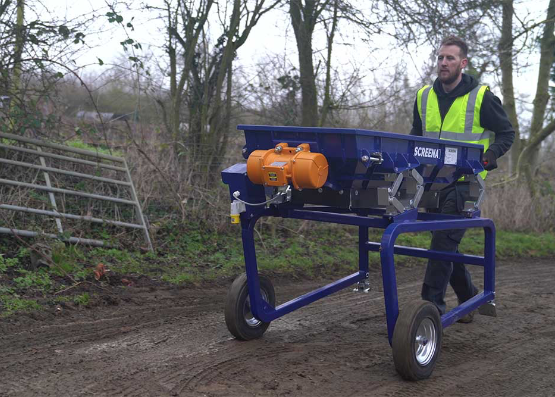

While being a sturdy unit at just under 200kg, the SCREENA is incredibly easy to move. Once lifted via the handles, the SCREENA is roughly equivalent to 20kg due to the weight distribution over the wheelbase, along with run-flat pneumatic tyres, the SCREENA can traverse rough terrain with ease.

SPECIFICATION

MACHINE NAME
Screena

APPLICATION

Agriculture, Construction, Foundry, Metal powder, Minerals, Mining, Recycling
MOTION
Linear horizontal
SCREEN SURFACE AREA
10
NUMBER OF SEPARATIONS
Up to 2
MESH OPENINGS
12MM, 25MM, 40MM
FEED RATES
60 tonnes/hour
ANTI BLINDING SYSTEM
Information not available
DIMENSIONS
Screen area = 1500mm x 650mm Information not available on size of unit
MACHINE MATERIAL
Steel

SCREEN MATERIAL

Steel
WEIGHT
198Kg
