MTS Tumbler

The MTS Tumbler is circular in construction with a central material feed, particularly suitable for very lightens materials. Well suited to food safe applications due to its circular construction and U-shaped silicon gaskets which enable easy fitting, the MTS Screener benefits from a motion which is independent of throughput and its patented adjustment system allows the operating parameters to be set quickly and simply.

Add To Compare

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

Download Data Sheet95 KB

BENEFITS

Model sizes: 600 – 1000 – 1200 – 1600 –2000 – 2400 and 2600 mm in diameter, with up to 5 decks
Specifications: mild steel, stainless steel or finishing on choice
Circular construction with central material feed, variable outlet positions and easy to clean
Automatic centring of the screens
Food-safe U-shaped silicon gaskets enable easy fitting
Patented adjustment system allows the operating parameters to be set quickly and simply
Screening motion independent of throughput
No oversize grains in the fine material
Fragile materials and agglomerates are not destroyed
Particularly suitable for very lightdense materials
Machines are shipped ready for operation and preset for the relevant product – in 90 per cent of all cases no further adjustment is necessary
Low height and modest power requirements
Compatible with other tumbler screen machines

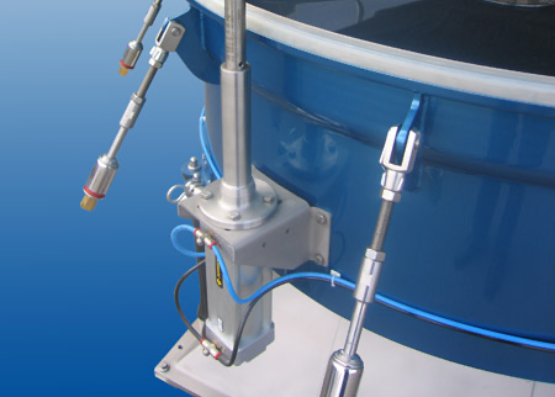

MINOX-patented Pneumatic lifting system for fast and save screen exchange
MINOX-patented baloncing system for low dynamic loads on foundation

SPECIFICATION

MACHINE NAME

MTS Tumbler

APPLICATION

Chemical Powders, Cosmetics, feed, fertilizer, Metal powder, Minerals, Mining, Pharmaceuticals, Plastics

MOTION

Circular, Tumbler

SCREEN SURFACE AREA

NUMBER OF SEPARATIONS

Up to 2, Up to 3, Up to 4

MESH OPENINGS

Information not available

FEED RATES

Information not available

ANTI BLINDING SYSTEM

Balls or brushes or Air jet/Air jet & brushes or Ultrasound

DIMENSIONS

Diameters range from 600mm – 2600mm Space required varies from 0.4m2 – 6.8m2 Heights vary dependant upon number of decks

MACHINE MATERIAL

Steel

SCREEN MATERIAL

Information not available

WEIGHT

Weights dependant upon number of decks
