MSS 802 EVO

MSS 802 EVO SCREENER
Wirtgen Group Logo

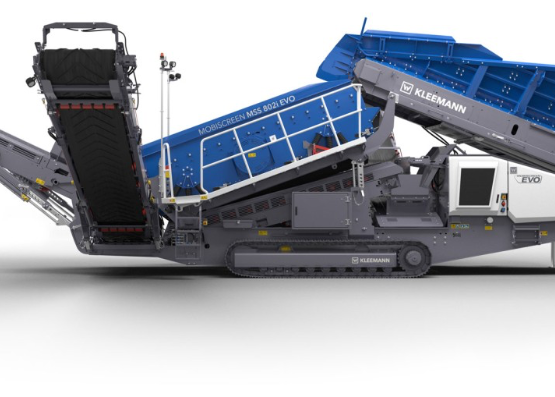

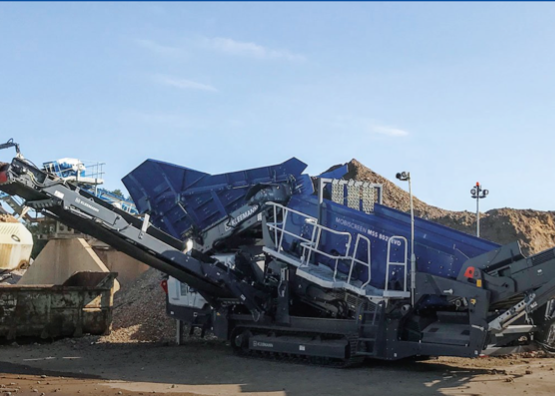

The mobile screen for coarse elements MOBISCREEN MSS 802 EVO is ideally prepared for changing work sites and new applicational challenges for screening plants. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 802 EVO easily to new application conditions. The operation of the MSS 802(i) EVO is conveniently carried out via a modern control system. Thanks to good accessibility, maintenance work can be performed comfortably.
MSS 802 EVO SCREEN
MSS 802 EVO
MSS 802I EVO
MSS 802I EVO SEPERATOR
Previous image
Next image
Add To Compare

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

Download Data Sheet882 KB
Download Brochure4 MB

BENEFITS

HIGHLIGHTS

Flexibility, operability and ergonomics: The mobile screen for coarse elements MOBISCREEN MSS 802(i) EVO

  • Screen for coarse elements
  • Mobile double-deck screening unit
  • Diesel-hydraulic drive
  • Maximum feed size 18″

STANDARD EQUIPMENT

  • Double-deck screening unit
  • Hopper unit 11,9 yd3
  • Feeding conveyor, smooth belt
  • Main discharge conveyor, belt width 55″, discharge height max. 13′ 3″
  • Removable, wired machine control system used for controlling all driving and movement functions, adapting settings and reading out machine data and troubleshooting aids
  • Pre-installed water spray system reduces dust
  • Line coupling for linking with other KLEEMANN plants

 OPTIONS

  • Individually foldable hopper filling aids for rear and side loading: width of feed opening 12′ 12″, wired remote control, foldable and lockable
  • Wear lining made of wear-resistant steel (KRS) or rubber
  • Apron feeder for feeding very coarse material
  • Screen blanket or chain curtain reduces the speed of the feed material
  • Permanent magnetic separator above the crusher discharge conveyor
  • Diesel refuelling pump: hose system incl. pump
  • External power supply – for efficient mains operation, possibility to change between two energy sources: own propulsion
    (diesel engine) or external power supply
  • Large selection of screen media for all decks, individual configuration option for the individual screen segments
  • Straps with knocking elements for use with sticky material
  • Extended main discharge conveyor, discharge height max. 15′ 4″
  • Electric water pump for autonomous supply of the spray system
  • Premium lighting for extended illumination of the material flow (transfer points and stockpiles)
  • Radio remote control: crawler chassis, hopper discharge conveyor ON/OFF and speed setting, emergency stop
  • Release cords on conveyor belts for safe stopping in the event of an emergency

SPECIFICATION

MACHINE NAME
MSS 802 EVO

APPLICATION

Agriculture, Construction, fertilizer, food, Foundry, Minerals, Mining
MOTION
Linear inclined
SCREEN SURFACE AREA
10, 25, 50
NUMBER OF SEPARATIONS
Up to 2, Up to 3
MESH OPENINGS
Feed size – 18″
FEED RATES
551 tons per hour
ANTI BLINDING SYSTEM
Information not available
DIMENSIONS
Top screening deck – 5′ x 16′ Bottom screening deck – 5′ x 14′ 9″ Fine Grain Conveyor – 48″ x 14′ 4″ Discharge Conveyor – 36″ x 25′ 6″ Transport Dimensions 11’2″ – 52′ – 9’10”
MACHINE MATERIAL
Steel

SCREEN MATERIAL

WEIGHT
66,000-85,000 lbs
