Low-Profile

Low-profile screener
Midwestern Industries Logo
The Low-Profile Separator from Midwestern Industries features a flow-through design effective for high capacity screening of dry and wet scalping applications. The compact design allows the Low-Profile unit to easily be incorporated to existing product lines or be placed in tight spaces on the shop floor, it is also an extremely good option for mobile classification plants.
Low-profile screener

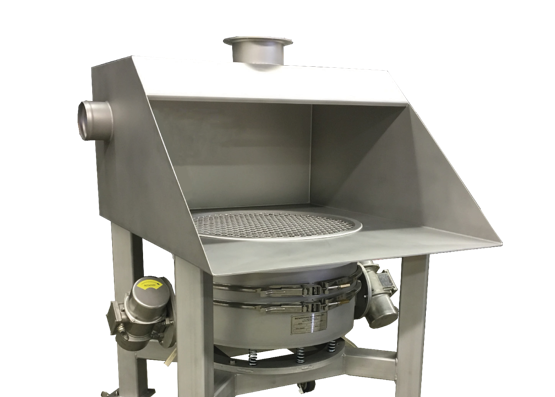

Low profile with bag dump

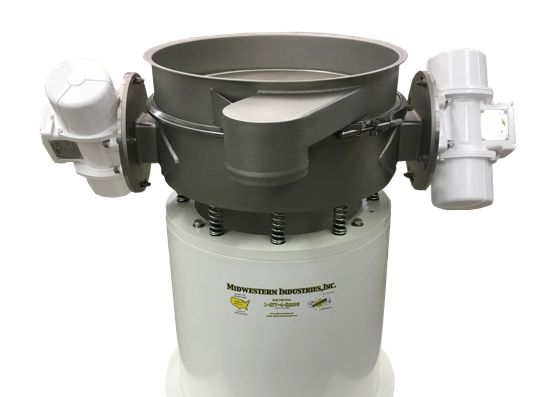

Low-profile with stand

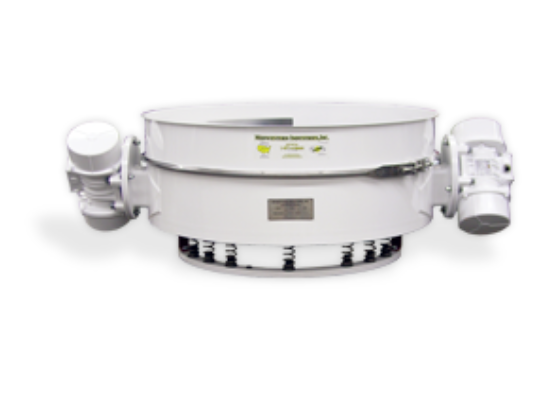

Low-profile
Previous image
Next image
Add To Compare

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

Download Brochure2 MB

BENEFITS

The two gyrating motors are positioned 180 degrees apart on external, adjustable side motor mounts, maximizing space and screening efficiency. The adjustable motor mounts enable strategic motor positioning, providing the best possible throughput and oversize discharge for a variety of scalping applications.

  • Compact size fits confined spaces
  • High capacity flow-through design
  • Screen wet or dry materials
  • Strategic motor placement
  • Available in many sizes

The Low-Profile Separator can accommodate high-temperature scalping applications due to the external motor placement. It is also available in many finishes suitable for food, pharmaceutical, dairy, and many more scalping processes.

SPECIFICATION

MACHINE NAME
Low-Profile

APPLICATION

Chemical Powders, Cosmetics, feed, fertilizer, food, Metal powder, Minerals, Pharmaceuticals, Plastics
MOTION
Circular, Tumbler
SCREEN SURFACE AREA
10
NUMBER OF SEPARATIONS
Up to 2
MESH OPENINGS
Information not available
FEED RATES
Information not available
ANTI BLINDING SYSTEM
Heated transformers
DIMENSIONS
44 1/4″ Diameter of Unit – 153/4″ Height of Unit
MACHINE MATERIAL
Stainless Steel And Carbon Steel

SCREEN MATERIAL

Wire Mesh or Steel
WEIGHT
Information not available
