Gyrator

The Gyrator screener from Palamatic Process come in 3 models depending on desired flow rate, suitable for food, pharmaceutical, chemical and synthetic industries. The Gyrator ensures clean product without lumps or foreign bodies and protects the production line from mechanical damage, in return providing a high quality end product.

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

Download Data Sheet33 KB

Download Brochure4 MB

BENEFITS

No retention area, highly hygienic with minimal maintenance
Easy change of the mesh screens
Tool-free quick release clamping for fast and easy disassembly
Possibility to implant in on pneumatic conveying pipe
High throughput rates

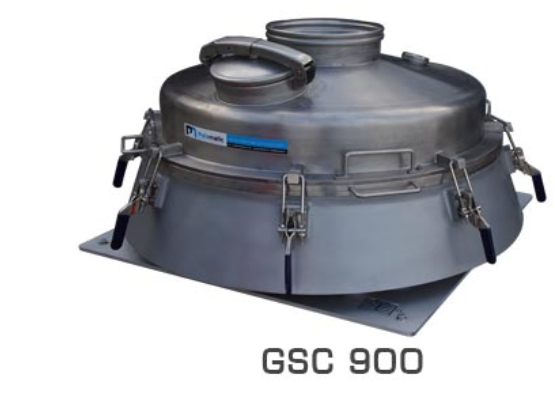

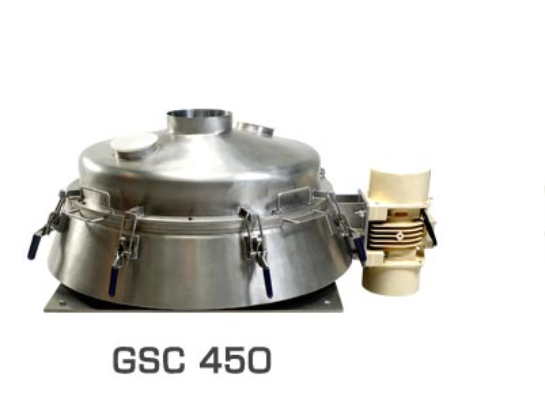

3 models of sifters: GSC 450, 600, 900
Long life equipment
Low maintenance
Easy replacement of the meshscreen
Easy and rapid dismantling using sping clips
Clean In Place (CIP)
High quality, heavy duty manufacturing

SPECIFICATION

MACHINE NAME

Gyrator

APPLICATION

Chemical Powders, Cosmetics, feed, food, Pharmaceuticals

MOTION

Tumbler

SCREEN SURFACE AREA

10

NUMBER OF SEPARATIONS

Up to 2

MESH OPENINGS

Information not available

FEED RATES

Uptown 6.5 tons/hour

ANTI BLINDING SYSTEM

Declogging balls and rings

DIMENSIONS

See Data Sheet Download

MACHINE MATERIAL

Steel

SCREEN MATERIAL

stainless steel or nylon

WEIGHT

150kg – 250kg

Print This Page
