Eldan Aspirators

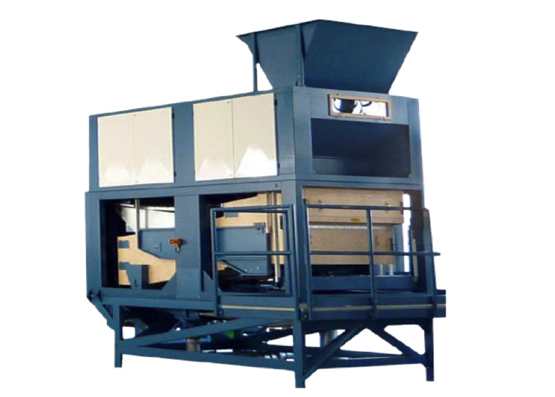

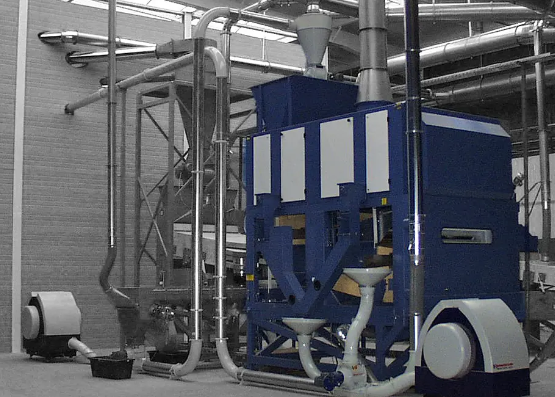

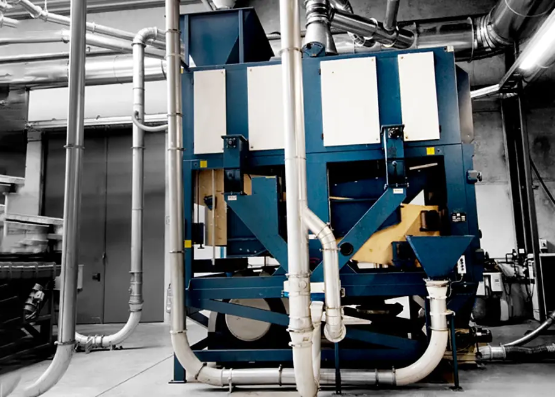

Eldan Aspirator
The elder aspirators are designed to separate textile from rubber granules and to classify the rubber granules into three sizes and dust. The Aspirator is used in tyres recycling. The machine uses two separate separation devices to ensure optimum purity. Initially, a suction system removes the dust fraction. Secondly, screens separate the textile and sorts the rubber. An efficient anti-clogging system consisting of bouncing rubber balls ensures that screens are not getting blocked by material. The screens with different hole sizes are available for various output material requirements. The Aspirators ensure a high cleaning efficiency on a wide range of rubber granules and powder.

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

BENEFITS

  • Designed to separate textile from rubber and to classify the rubber granules • Low speed, high torque enabling processing of tough material

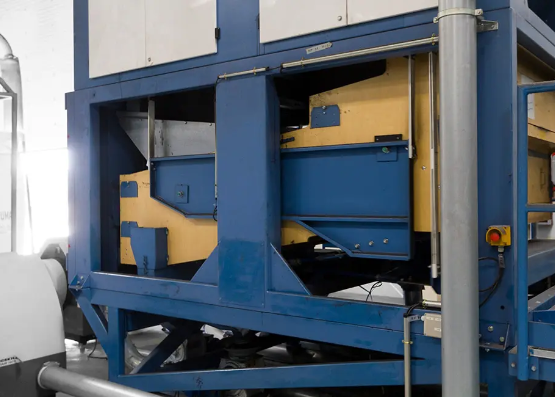

  • The machine uses two separate separation devices to ensure optimum purity – initially, a dust suction system that removes the dust fraction, and secondly, screens that separate textile and sorts the rubber
  • An efficient anti-clogging system consisting of bouncing rubber balls ensures that the screens are not locked by material
  • The required screens with different hole sizes are available for various output material requirements
  • Screens are easy to change
  • The Aspirators ensure a high cleaning efficiency on a wide range of rubber granules and powder

SPECIFICATION

MACHINE NAME
Eldan Aspirators

APPLICATION

Recycling
MOTION
Linear horizontal
SCREEN SURFACE AREA
50, 100, 250, above
NUMBER OF SEPARATIONS
Up to 2
MESH OPENINGS
Different options available
FEED RATES
2000kg – 5000kg/hour
ANTI BLINDING SYSTEM
Bouncing balls
DIMENSIONS
3750mm x 2400mm x 4500mm (Smallest) – 3750mm x 2650m x 5800mm (Largest)
MACHINE MATERIAL
Steel

SCREEN MATERIAL

WEIGHT
4600kg (Smallest) – 5900kg (Largest)
