Cross-FLO

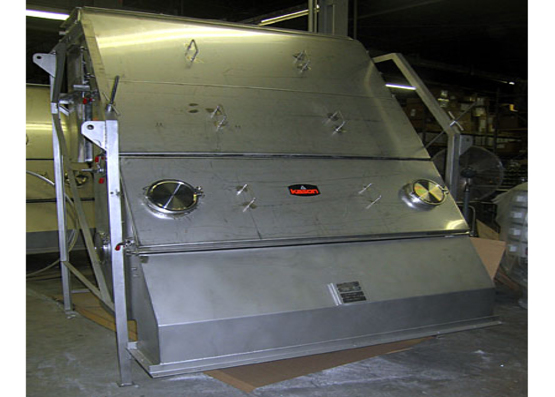

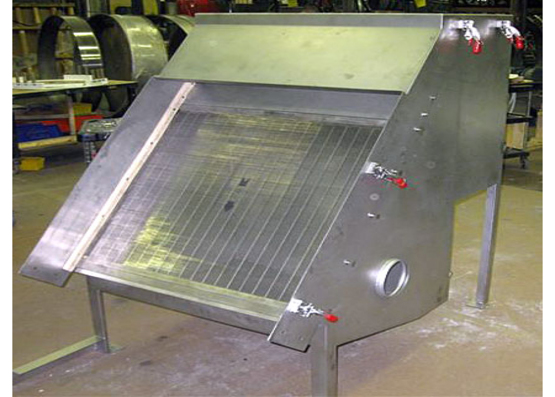

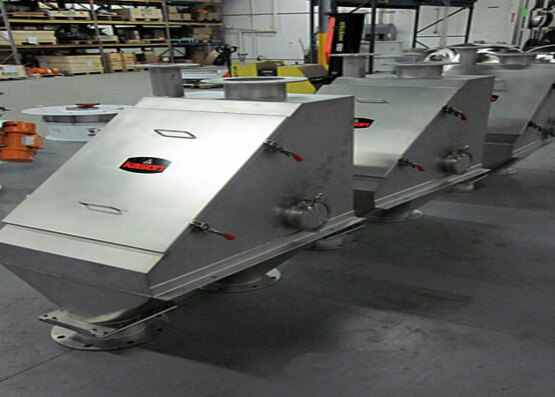

CROSS-FLO by Kason Corporation’s static sieve screeners and separators offer the perfect combination of high-performance, reliability, and cost-effectiveness. They have been utilized by a diverse range of customers in the brewing, food production, industrial, and chemical industries. The industry-leading static sieve screeners and static sieve separators have been designed to offer consistent screening at high rates, while also taking up less floor space and being easy to maintain. Because our CROSS-FLO static scalping and dewatering sieves require no electrical drive or screen changes, initial and operational costs are low.

Add To Compare

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

Download Brochure2 MB

BENEFITS

Some of the main benefits of CROSS-FLO static sieve screeners and separators include:

No moving parts, which helps to reduce the time spent on maintenance
High levels of corrosion and abrasion resistance
Freestanding making them ideal for factories with limited floor space
Outstanding performance in challenging applications such as handling caustic solutions and wastewater
Adjustable decks
Zero energy consumption
Easy modification to meet the space and operation requirements of your business

CROSS-FLO units are compliant with all US and international safety and sanitary regulations and are available in widths from 24 inches to 72 inches (610mm to 1830mm) in 12-inch (305mm)increments and larger sizes available on a custom basis, to accommodate various flows.

Because the sieve requires no electrical drive or screen changes, initial cost and operational cost are low.

SPECIFICATION

MACHINE NAME

Cross-FLO

APPLICATION

Chemical Powders, feed, food

MOTION

SCREEN SURFACE AREA

NUMBER OF SEPARATIONS

Up to 2

MESH OPENINGS

.25 to 3 in (6 to 76 mm)

FEED RATES

Each sieve handles from 30 to 60 gpm (110 liters/min. to 220 liters/min.) of wastewater, 24 hours per day from September through December.

ANTI BLINDING SYSTEM

Information not available

DIMENSIONS

Standard units are available in widths from 2 to 6 ft. (610 to 1830 mm) in 1 ft. (305 mm) increments, with larger sizes available on a custom basis.

MACHINE MATERIAL

Steel

SCREEN MATERIAL

WEIGHT

Information not available
