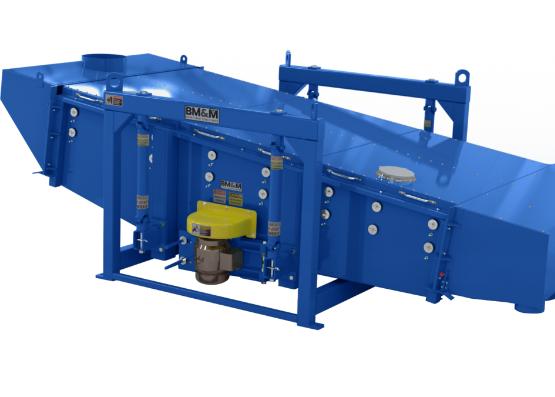

BM&M Super Screen

BM&M Screening Solutions’ Super Screen system utilizes a high-speed, horizontal gyratory design that is dynamically balanced to allow for greater screening speeds and larger strokes than conventional sifters and screeners. The Super Screen is a high speed linear gyrator design that is balanced dynamically to allow greater speeds and higher stroked than conventional sifters and screeners. It has the same patented aggressive screen actions that enables all BM&M screens to achieve high capacities and efficiencies.

Add To Compare

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

Download Brochure10 MB

BENEFITS

Efficient cleaning & minimum product loss
Dynamically balanced to minimise building loads & vibration
Patented Weight Drive technology to generate eccentric motion
Standard ball deck screen cleaning
Tensioned screen design
Factory tested at no charge
Food grade T3404SS options available
Abrasion-resistant A.R steel construction.

SPECIFICATION

MACHINE NAME

BM&M Super Screen

APPLICATION

Agriculture, Biomass, feed, Plastics, Recycling

MOTION

Gyratory reciprocating

SCREEN SURFACE AREA

100

NUMBER OF SEPARATIONS

MESH OPENINGS

1 1/2” to 150 mesh

FEED RATES

ANTI BLINDING SYSTEM

Ball decks

DIMENSIONS

48 3/4″ (L) – 37 1/4″ (W) – 33 1/2″ (H) – Smallest Machine 162″ (L) – 104″ (W) – 65″ (H) – Largest Machine

MACHINE MATERIAL

Steel

SCREEN MATERIAL

WEIGHT

550lb (Smallest) – 6500lb (largest)
