ATLAS Gyratory Sifter

ATLAS
The SWECO ATLAS Gyratory Sifter is the biggest sifter SWECO have offered yet, offering high capacity screening in a low maintenance, operator-friendly design. The horizontal, uniform gyratory motion of the ATLAS provides the highest performance per screen area available on the market, which means sharper separations, higher volume, exceptional screen cleaning, low dynamic force and unparalleled material spread-ability.  Ideal for a wide range of industries including chemical, food, plastics, agriculture and minerals, the ATLAS Gyratory Sifter is available in 33 versatile configurations with up to 12 screens, ranging from 32ft² (3m²) to 528ft² (49m²) of screening area, and 2-5 product fractions.
Atlas Sweco Syfter

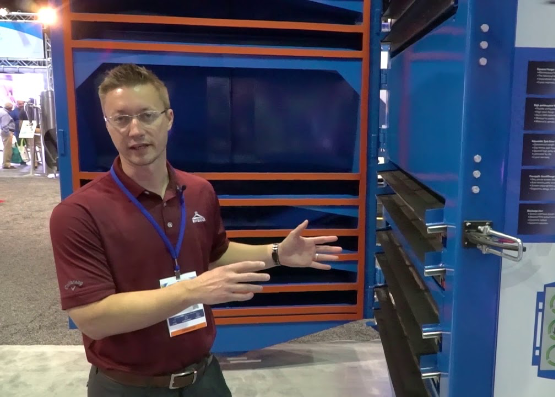

Atlas Sweco Demo

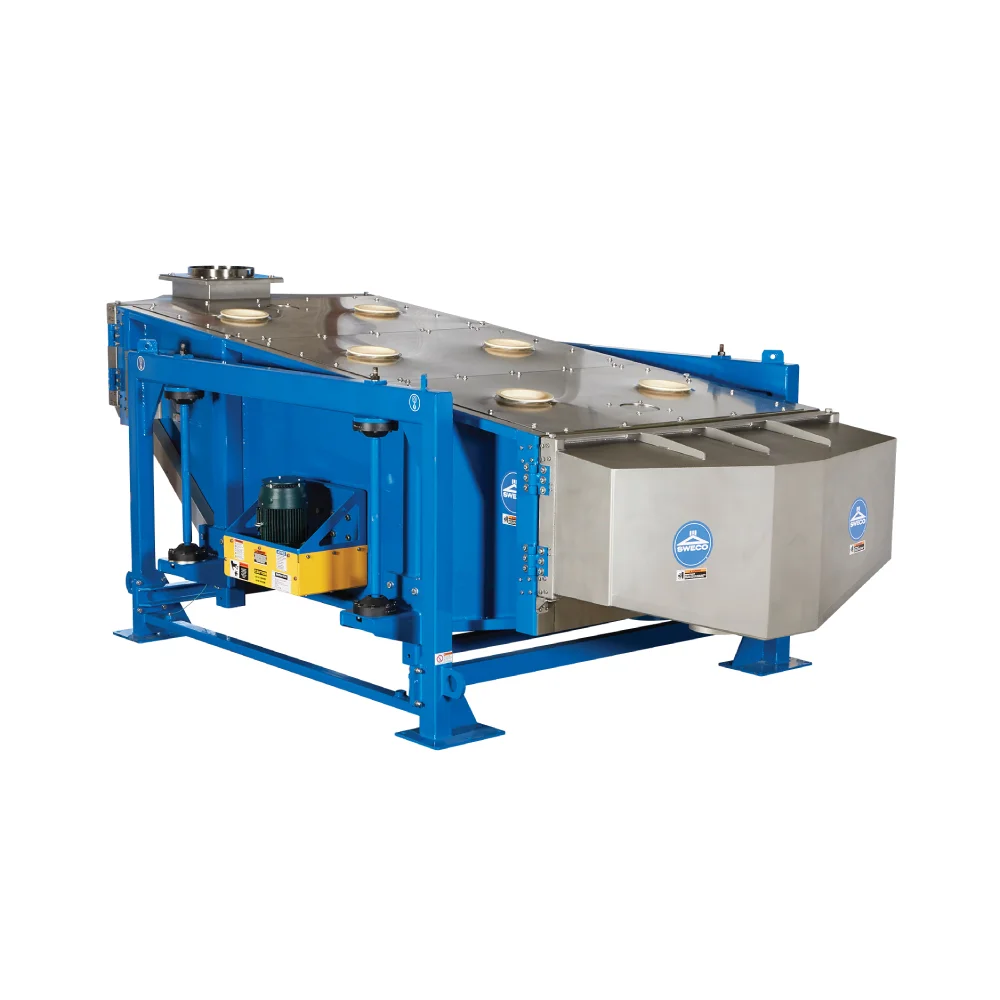

1-ATLAS-Rectangular-Separator
atlas-maintenance
Previous image
Next image
Add To Compare

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

Download Brochure8 MB

BENEFITS

Dynamic hanger system*

  • Maintenance free
  • Pre-balanced design
  • Unparalleled repeatability • 3-year warranty

High-performance feed box*

  • Flexible configuration
  • High-wear design
  • Quick field replacement
  • Material is evenly distributed to each screen level • Material is spread prior to contact with screen

Adjustable Split Drive*

  • Symmetrical weight assembly
  • One minute belt change
  • Optional high-temp design 400°f/204°c • Lubricated for life
  • 3-year warranty

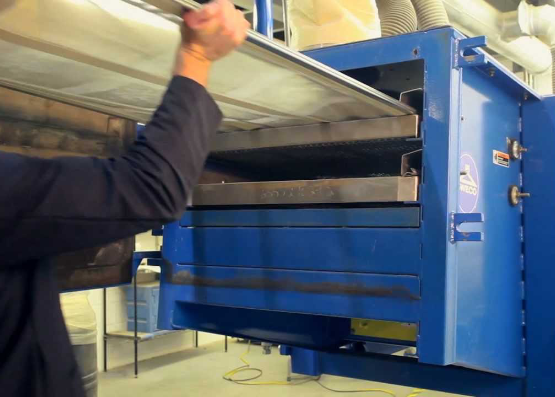

Pneumatic QuickChangeTM screen technology*

  • One minute screen change
  • Auto-tension adds increased efficiency /screen life
  • Screen replaced from either end
  • Ergonomic design, no need to remove ball boxes

Discharge door

  • Screen extension design increases efficiency
  • Waterfall flow enhances product discharge
  • Centerline outlet
  • Footprint reduction

*Features Patent Pending worldwide



SPECIFICATION

MACHINE NAME
ATLAS Gyratory Sifter

APPLICATION

Agriculture, Chemical Powders, fertilizer, food, Minerals, Plastics
MOTION
Gyratory reciprocating
SCREEN SURFACE AREA
above
NUMBER OF SEPARATIONS
More
MESH OPENINGS
12mm -325mm
FEED RATES
ANTI BLINDING SYSTEM
De-blinding balls
DIMENSIONS
Dependant upon size and specification of machine. AGS21408 = 3782.7mm(L) – 2118mm(W) – 1716.5mm (H)
MACHINE MATERIAL
Steel

SCREEN MATERIAL

Information not available
WEIGHT
Information not available
