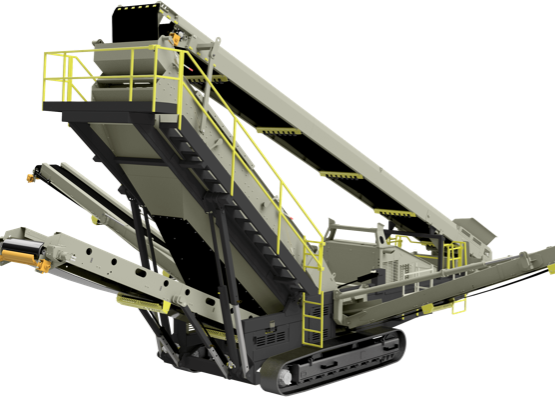

Astec High Frequency Screener

Astec High Frequency
Astec Logo

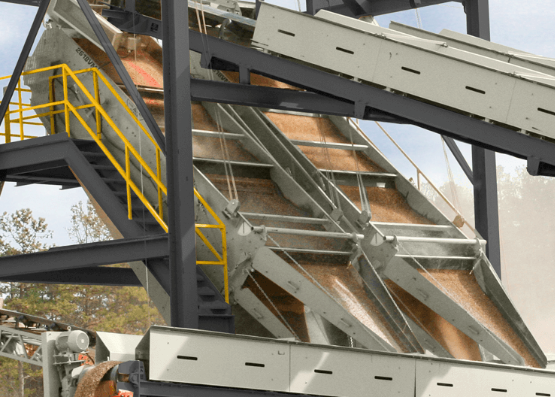

Astec High Frequency Screens utilise high-speed vibration allowing for increased stratification of the screen media. The directly-induced vibration improves screen efficiency at high production rates compared to conventional screens. A unique rotary tensioning system provides the quickest screen media changes in the market, up to 50 percent faster than competitive models. Our high frequency screens offer ideal gradation control for reclaiming fines in both wet and dry applications.

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

BENEFITS

The Astec High Frequency Screeners operate at the following;

  • 38-43 degree operating angles
  • Maximum stroke of .094″/2.38mm
  • Speed range from 3,600-4,300RPM



The machines benefit from Rotary tensioning systems which provide quick screen media changes, easy replacement of each section and less downtime which in turn created increased operation time.

Driven by variable screen hydraulic vibrators for optimal screen efficient and production allows the plant to be specifically tailored to the application and screen media.

High production of numerous different screen medias can be achieved through the use of the Various Vibe Screens.

SPECIFICATION

MACHINE NAME
Astec High Frequency Screener

APPLICATION

Agriculture, Construction, Foundry, Recycling
MOTION
Ultra high frequency
SCREEN SURFACE AREA
10, 25, 50
NUMBER OF SEPARATIONS
Up to 2, Up to 3, Up to 4
MESH OPENINGS
1/2″-30M Material Seperations
FEED RATES
Dependant upon screen material and applicational materials
ANTI BLINDING SYSTEM
Information not available
DIMENSIONS
Smallest – 5ft (width) – 12ft (length) Largest – 6ft (width) – 18ft (length)
MACHINE MATERIAL
Steel

SCREEN MATERIAL

Cloth medias available
WEIGHT
3,200lb – 13,000lb dependant upon model
