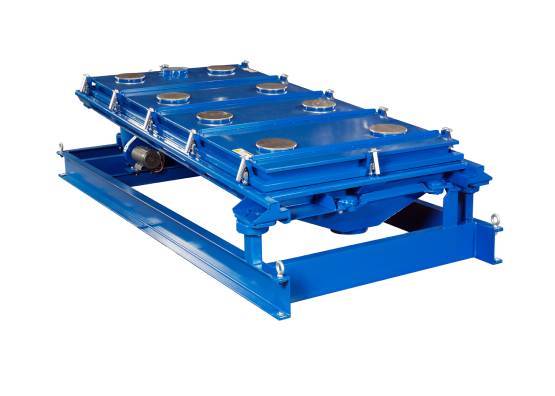

APEX Industrial Screener

apex
The APEX industrial screener boasts extremely precise product separations (thanks to Gyratory Reciprocating Motion) and a sleek ergonomic design that enables one-person inspections and maintenance. Increase profitability and safety while decreasing downtime with APEX.Tailored specifically for the agricultural industry.

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

BENEFITS

Rotex’s Gyratory Reciprocating Motion

The Gyratory Reciprocating Motion gradually transitions along the length of the screening machine, starting off as purely gyratory motion at the head, then moving to elliptical movement in the center and reverting back to reciprocating toward the end.

  • Circular motion at feed end
    • Spreads the material across the full width of the screen surface
    • Stratifies the material
    • Aggressively conveys material forward
  • Changing to elliptical motion at center
    • Long-stroke elliptical action
    • Enhances product stratification
    • Conveys material at high capacity
  • Reciprocating motion at discharge end
    • Removes near-size particles
    • Improves screening efficiency
    • No vertical component ensures material is in constant contact with the screen surface
  1.

Quick Screen Changes

Side access doors combined with pre-tensioned screen panels allow a single operator to change the entire machine in minutes.

More Uptime, More Profit

Easy single-operator inspection and maintenance results in increased processing uptime, reduced screening costs and the ability to produce more quality product.

Increased Screening Performance

When compared to standard separators, all Rotex machines deliver greater efficiencies, superior particle accuracies and higher yields.

Longevity and Durability

Rotex drives are designed for long-term, trouble-free service with minimal maintenance required.

SPECIFICATION

MACHINE NAME
APEX Industrial Screener

APPLICATION

Agriculture, Biomass, Chemical Powders, Construction, feed, fertilizer, food, Metal powder, Micronised Industrial Materials, Minerals, Mining, Pharmaceuticals, Plastics, Recycling
MOTION
Gyratory reciprocating
SCREEN SURFACE AREA
10
NUMBER OF SEPARATIONS
Up to 3
MESH OPENINGS
15 microns – 5 cm
FEED RATES
2kg/h – 400,000kg/h
ANTI BLINDING SYSTEM
Mesh
DIMENSIONS
Height: 6100mm – 5556mm ( 46in – 140in)
Length: 5896mm – 2512mm (514in – 217in)
Width: 4512mm – 4468mm (417in – 294in)
MACHINE MATERIAL
Steel

SCREEN MATERIAL

Steel
WEIGHT
7900kgs – 13610kgs (5600lbs – 24600lbs)
