512R Trommel

512R Trommel
Mccloskey Logo
The 512R Trommel provides the functionality of a highly successful screener with McCloskey’s patented radial conveyor. The 512 trommels are best suited for mid-size operations requiring portability and proven screening performance. Available in diesel and electric the 512R’s radial conveyor delivers more efficient stockpiling of material. The environmentally friendly electric model reduces costs, and is perfect where environmental, legislative, or noise constraints are present. The 512 offers a combination of high production rates, versatility, ease of use and unrivalled strength that has ensured this screener’s popularity with top soil producers, contractors, and landscape supply operators.

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

BENEFITS

Features

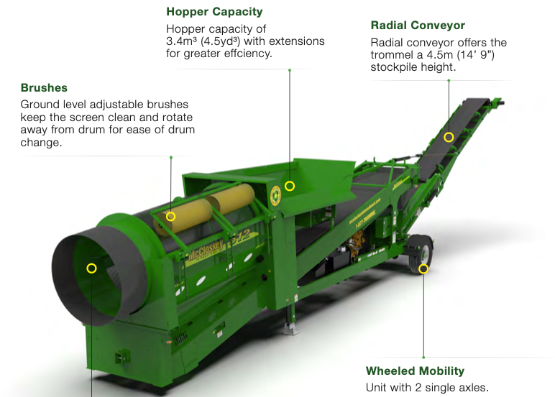

  • 5’x12’ heavy duty trommel drum
  • Wheeled or tracked mobility
  • 55 kW (74 hp) engine
  • Integrated hydraulic folding stockpiling conveyor
  • Fast on-site setup time (10 minutes)
  • Remote control radial conveyor
  • Electric model available

As one of the top selling mid-size portable trommel in North America, the 512 offers a combination of high production rates, versatility, ease of use and unrivalled strength that has ensured this screener’s popularity with top soil producers, contractors, and landscape supply operators.

SPECIFICATION

MACHINE NAME
512R Trommel

APPLICATION

Agriculture, Construction, feed, fertilizer, food, Minerals, Mining, Recycling
MOTION
Trommel
SCREEN SURFACE AREA
10, 25, 50
NUMBER OF SEPARATIONS
Up to 2
MESH OPENINGS
Information not available
FEED RATES
Information not available
ANTI BLINDING SYSTEM
Ground level adjustable brushes
DIMENSIONS
Transport – 14.6m (Length) – 2.59m (Width) – 4.14m (Height)
MACHINE MATERIAL
Steel

SCREEN MATERIAL

Information not available
WEIGHT
12,250kg
